Mixpac Helical Mixer for Cartridges
Mixpac Helical mixers have the elements designed in the form of spiral that combines and divides the two separate input material in such a way that the resultant mixed material becomes homogenous. They are available in PP, PA and PBT grades. While PP cartridges are used for epoxy and Polyurethanes, PA cartridge and PBT cartridge are used exclusively for packaging methacrylate adhesives.
Helical Static Mixers for 50ml Dual Cartridge Adhesive

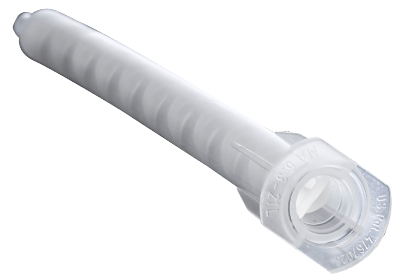

Mixpac A type static mixers
Mixpac A type static mixers are the first generation static mixers in which the adhesive inlet is designed in such a manner that both Part A and B enter the mixer together while first contact between Part A and Part B adhesive happens right at the entrance.
Cartridges suitable for “Mixpac A series” mixers are “Mixpac A type cartridges” that have their bayonet designed to fit perfectly on Mixpac A type mixers with Part A and Par B outlet in the cartridge separated by a thin wall.
| Mixpac Mixer Series | Recommended Cartridge | Mix Ratio | Construction Grade | Description |
|---|---|---|---|---|
| Mixpac MAH | A Type 50ml | 1:1/2:1 | Polypropylene | MAH series is a helical static mixer designed for both 1:1 and 2:1 mix ratio adhesive in “A” type cartridge |
| Mixpac MAHX | 4:1/10:1 | MAHX series is a helical static mixer designed for both 4:1 and 10:1 mix ratio adhesive in “A” type cartridge |
| Mixpac Mixer Series | Mixpac MAH | Mixpac MAHX |
| Mix Ratio | 1:1/2:1 | 4:1/10:1 |
| Description | MAH series is a helical static mixer designed for both 1:1 and 2:1 mix ratio adhesive in “A” type cartridge | MAHX series is a helical static mixer designed for both 4:1 and 10:1 mix ratio adhesive in “A” type cartridge |
| Recommended Cartridge | A Type 50ml | |
| Construction Grade | Polypropylene | |
Mixpac B type static mixers
Mixpac B type static mixers are the second generation static mixers in which the adhesive inlet is designed in such a manner that both Part A and B enter the mixer separately and the first contact between Part A and Part B adhesive happens after the entrance.
Cartridges suitable for “Mixpac B series” mixers are “Mixpac B type cartridges” that have their bayonet designed to fit perfectly on Mixpac B type mixers with Part A and Par B outlet in the cartridge are dispensed through separate tubes.
| Mixpac Mixer Series | Recommended Cartridge | Mix Ratio | Construction Grade | Description |
|---|---|---|---|---|
| Mixpac MBH | B Type 50ml | 1:1/2:1 | Polypropylene | MBH series is a helical static mixer designed for both 1:1 and 2:1 mix ratio adhesive in “B” type cartridge |
| Mixpac MBHX | 4:1/10:1 | MBHX series is a helical static mixer designed for both 4:1 and 10:1 mix ratio adhesive in “B” type cartridge |
| Mixpac Mixer Series | Mixpac MBH | Mixpac MBHX |
| Mix Ratio | 1:1/2:1 | 4:1/10:1 |
| Description | MBH series is a helical static mixer designed for both 1:1 and 2:1 mix ratio adhesive in “B” type cartridge | MBHX series is a helical static mixer designed for both 4:1 and 10:1 mix ratio adhesive in “B” type cartridge |
| Recommended Cartridge | B Type 50ml | |
| Construction Grade | Polypropylene | |
Helical Static Mixers for 200ml and 400ml Dual Cartridge Adhesive
Mixpac C type static mixers
Mixpac C type static mixers are the first generation static mixers in which the adhesive inlet is designed in a manner that both Part A and B enter the mixer together while first contact between Part A and Part B adhesive happens right at the entrance.Cartridges suitable for “Mixpac C type static mixer” are “Mixpac C type cartridges”
| Mixpac Mixer Series | Recommended Cartridge | Mix Ratio | Construction Grade | Description |
|---|---|---|---|---|
| Mixpac MCH | C Type 200ml and 400ml | 1:1/2:1 | Polypropylene | MCH series is a helical static mixer designed for both 1:1 and 2:1 mix ratio adhesive in “C” type cartridge |
| Mixpac MCHX | 4:1/10:1 | MCHX series is a helical static mixer designed for both 4:1 and 10:1 mix ratio adhesive in “C” type cartridge |
| Mixpac Mixer Series | Mixpac MCH | Mixpac MCHX |
| Mix Ratio | 1:1/2:1 | 4:1/10:1 |
| Description | MCH series is a helical static mixer designed for both 1:1 and 2:1 mix ratio adhesive in “C” type cartridge | MCHX series is a helical static mixer designed for both 4:1 and 10:1 mix ratio adhesive in “C” type cartridge |
| Recommended Cartridge | C Type 200ml and 400ml | |
| Construction Grade | Polypropylene | |
Mixpac F type static mixers
Mixpac F type static mixers are the second generation static mixers in which the adhesive inlet is designed in such a manner that both Part A and B enter the mixer separately through separate tubes and the first contact between Part A and Part B adhesive happens after the entrance inside the static mixer.
Cartridges suitable for “Mixpac F type static mixer” are “Mixpac F type cartridges”
| Mixpac Mixer Series | Recommended Cartridge | Mix Ratio | Construction Grade | Description |
|---|---|---|---|---|
| Mixpac MFH | F Type-200ml and 400ml | 1:1/2:1 | Polypropylene | MFH series is a helical static mixer designed for both 1:1 and 2:1 mix ratio adhesive in “F” type cartridge |
| Mixpac MFHX | 4:1/10:1 | MFHX series is a helical static mixer designed for both 4:1 and 10:1 mix ratio adhesive in “F” type cartridge |
| Mixpac Mixer Series | Mixpac MFH | Mixpac MFHX |
| Mix Ratio | 1:1/2:1 | 4:1/10:1 |
| Description | MFH series is a helical static mixer designed for both 1:1 and 2:1 mix ratio adhesive in “F” type cartridge | MFHX series is a helical static mixer designed for both 4:1 and 10:1 mix ratio adhesive in “F” type cartridge |
| Recommended Cartridge | C Type 200ml and 400ml | |
| Construction Grade | Polypropylene | |
