Manual Dispenser for Dual Cartridge adhesives
Our two component Mixpac, MK and Cox manual dispensers are hand operated applicators for adhesives packed in 25ml, 50ml, 200ml and 400ml dual cartridges and 380ml Coaxial cartridges. They are suited for all adhesive chemistry such as Epoxy, Polyurethane, Silicone and Methacrylate
Specifications
| Cartridge Capacity | 50-75mL |
| Length | 109mm |
| Cartridge Ratio | 1:1, 2:1, 4:1, 10:1 |

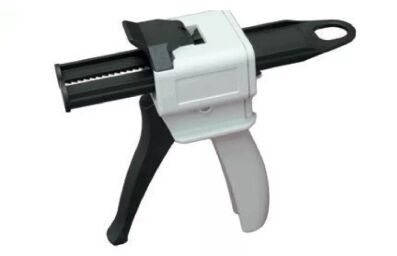

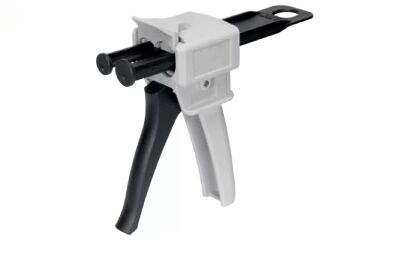

Mixpac DMA 51 and DS are manual dispensers for 50ml dual cartridges. It is important for users to note that DMA51 is used for 50ml R Flange cartridges while DS range is used for 50ml S flange cartridges. Manufactured using engineered plastics like PBT and Nylon these products offer high rigidity for use with low and medium viscous products. Specific part numbers are available for various mixing ratios.
Specifications
| Cartridge Ratio | 1:1, 2:1, 4:1, 10:1 |

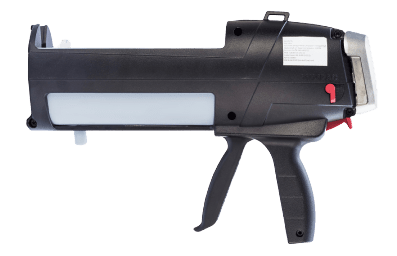

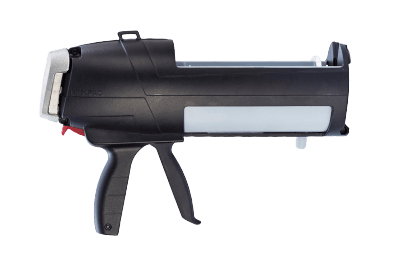

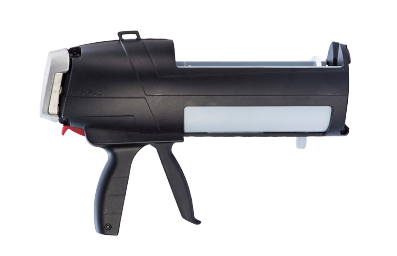

Mixpac DM2X 200 and DM2X 400 are high powered manually operated 2nd generation dispensers to apply two component epoxy, acrylic, silicone or polyurethane adhesives from Mixpac C and F type cartridges. Stable piston rods and rigid tool frame provide support for superior mixing and dispensing performance with a thrust of 5.2kN. Mixpac DM2X are an all in one solution, conversion kits allow 1:1, 2:1, 4:1 and 10:1 cartridges to be used in the same Mixpac DM2X dispenser instead of using four different dispensers.
Specifications
| Cartridge Ratio | 1:1, 2:1, 4:1, 10:1 |
| Maximum Thrust | 3.5kN |
| Mechanical Advantage Ratio | 18:1 |
VBM 200 and VBM 400 are our entry level manual dispensing applicators for 200ml and 400ml cartridges. Both the dispensers are designed to be used with different cartridge types, though fitment is suggested prior to purchase. The frame and handles are made of high quality cast aluminium and epoxy coated steel for day long comfortable use. Wear compensation device (WCD) gives you long and worry free efficient dispensing.
Specifications
| Maximum Thrust | 3.5kN |
| Mechanical Advantage Ratio | 18:1 |
| Weight | 1.1kg |
| Length | 181mm |
| Capacity | 380mL |
Not Available
Cox CCM380 is a two component manual dispenser designed for use with 380ml coaxial cartridges. This dispenser is powered by an 18:1 mechanical advantage ratio that reduces risk of operator fatigue and increases productivity. This applicator has robust construction of steel frames that provides long and worry free performance.
