Mixpac Quadro Mixer for Cartridges
The Mixpac Quadro Mixer is a cutting-edge and exceptionally effective static mixer designed to enhance mixing efficiency for two-component systems.
Mixpac Quadro Static Mixers are designed with specially engineered square mixing elements that provide highly efficient mixing performance within a compact mixer length. The innovative element geometry continuously combines and redistributes two-component materials to ensure a uniform and homogeneous mix throughout the dispensing process.
The compact design helps minimize material wastage, while delivering excellent mixing quality, improved dispensing accuracy, and consistent application performance across a wide range of adhesive and sealant applications.
Static Mixers suitable for Mixpac A type cartridges are Mixpac MAH series that have the special bayonet designed to fit perfectly on Mixpac A type cartridges.
Quadro/Square Static Mixers for 50ml Dual Cartridge Adhesive

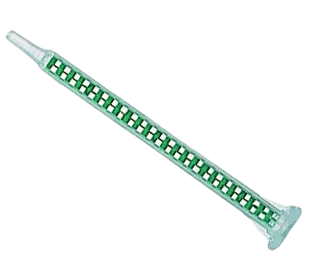

Mixpac A type static mixers
Mixpac A type static mixers are the first generation static mixers in which the adhesive inlet is designed in such a manner that both Part A and B enter the mixer together while first contact between Part A and Part B adhesive happens right at the entrance.
Cartridges suitable for “Mixpac A series” mixers are “Mixpac A type cartridges” that have compatible adhesive outlet design
| Mixpac Mixer Series | Recommended Cartridge | Mix Ratio | Construction Grade | Description |
|---|---|---|---|---|
| Mixpac MAQ | 50ml | 1:1/2:1 | Polypropylene | MAQ series is a Quadro/Square static mixer designed for both 1:1 and 2:1 mix ratio adhesive in “A” type cartridge |
| Mixpac MAQX | 4:1/10:1 | MAQX series is a Quadro/Square static mixer designed for both 4:1 and 10:1 mix ratio adhesive in “A” type cartridge |
| Mixpac Mixer Series | Mixpac MAQ | Mixpac MAQX |
| Mix Ratio | 1:1/2:1 | 4:1/10:1 |
| Description | MAQ series is a Quadro/Square static mixer designed for both 1:1 and 2:1 mix ratio adhesive in “A” type cartridge | MAQX series is a Quadro/Square static mixer designed for both 4:1 and 10:1 mix ratio adhesive in “A” type cartridge |
| Recommended Cartridge | 50ml | |
| Construction Grade | Polypropylene | |

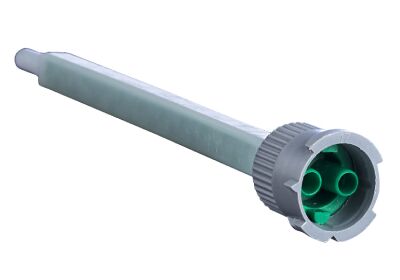

Mixpac B type static mixers
Mixpac B type static mixers are the second generation static mixers in which the adhesive inlet is designed in such a manner that both Part A and B enter the mixer separately and the first contact between Part A and Part B adhesive happens after the entrance.
Cartridges suitable for “Mixpac B series” mixers are “Mixpac B type cartridges” that have compatible adhesive outlet design
| Mixpac Mixer Series | Recommended for Cartridge size | Mix Ratio | Construction Grade | Description |
|---|---|---|---|---|
| Mixpac MBQ | 50ml | 1:1/2:1 | Polypropylene | MBQ series is a Quadro/Square static mixer designed for both 1:1 and 2:1 mix ratio adhesive in “B” type cartridge |
| Mixpac MBQX | 4:1/10:1 | MBQX series is a Quadro/Square static mixer designed for both 4:1 and 10:1 mix ratio adhesive in “B” type cartridge |
| Mixpac Mixer Series | Mixpac MBQ | Mixpac MBQX |
| Mix Ratio | 1:1/2:1 | 4:1/10:1 |
| Description | MBQ series is a Quadro/Square static mixer designed for both 1:1 and 2:1 mix ratio adhesive in “B” type cartridge | MBQX series is a Quadro/Square static mixer designed for both 4:1 and 10:1 mix ratio adhesive in “B” type cartridge |
| Recommended Cartridge | 50ml | |
| Construction Grade | Polypropylene | |
Quadro/Square Static Mixers for 200ml and 400ml Dual Cartridge Adhesive

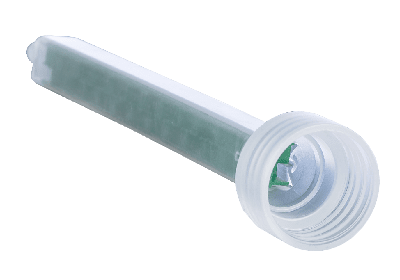

Mixpac C/G type static mixers
Mixpac C/G type static mixers are the first generation static mixers in which the adhesive inlet is designed in a manner that both Part A and B enter the mixer together while first contact between Part A and Part B adhesive happens right at the entrance. While C type bayonets are non-threaded, G type bayonets have threads
Cartridges suitable for “Mixpac C and G type static mixer” are “Mixpac C type cartridges” With or without threads.
| Mixpac Mixer Series | Recommended for Cartridge size | Mix Ratio | Construction Grade | Description |
|---|---|---|---|---|
| Mixpac MCQ | 200ml and 400ml | 1:1/2:1 | Polypropylene | MCQ & MGQ series are square static mixers designed for all mix ratio adhesives in “C” type cartridge. While MCQ is used for non-threaded cartridge outlets, MGQ is used on the threaded cartridges.Mixpac MGQ Mixers can also be used on low flow rate machine applications |
| Mixpac MGQ | 4:1/10:1 |
| Mixpac Mixer Series | Mixpac MCQ | Mixpac MGQ |
| Mix Ratio | 1:1/2:1 | 4:1/10:1 |
| Description | MCQ & MGQ series are square static mixers designed for all mix ratio adhesives in “C” type cartridge. While MCQ is used for non-threaded cartridge outlets, MGQ is used on the threaded cartridges. Mixpac MGQ Mixers can also be used on low flow rate machine applications | |
| Recommended Cartridge | 200ml and 400ml | |
| Construction Grade | Polypropylene | |

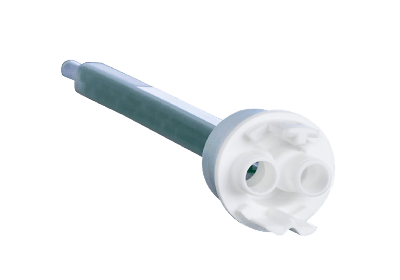

Mixpac F type static mixers
Mixpac F type static mixers are the second generation static mixers in which the adhesive inlet is designed in such a manner that both Part A and B enter the mixer separately through separate tubes and the first contact between Part A and Part B adhesive happens after the entrance inside the static mixer.
Cartridges suitable for “Mixpac F type static mixer” are “Mixpac F type cartridges”
| Mixpac Mixer Series | Recommended Cartridge | Mix Ratio | Construction Grade | Description |
|---|---|---|---|---|
| Mixpac MFQ | 200ml and 400ml | 1:1/2:1 | Polypropylene | MFQ series is a square static mixer designed for both 1:1 and 2:1 mix ratio adhesive for “F” type cartridge |
| Mixpac MFQX | 4:1/10:1 | MFQX series is a Quadro static mixer designed for both 4:1 and 10:1 mix ratio adhesive in “F” type cartridge |
| Mixpac Mixer Series | Mixpac MFQ | Mixpac MFQX |
| Mix Ratio | 1:1/2:1 | 4:1/10:1 |
| Description | MMFQ series is a square static mixer designed for both 1:1 and 2:1 mix ratio adhesive for “F” type cartridge | MFQX series is a Quadro static mixer designed for both 4:1 and 10:1 mix ratio adhesive in “F” type cartridge |
| Recommended Cartridge | 50ml | |
| Construction Grade | Polypropylene | |
